Professional High Frequency X-ray Radiolography System EKONHX07B

Quick Details

Power Output:65KW Inverter Frequency≧60KHz Tube Voltage:40KV~150KV Tube Current For digital Radiography:10mA-650mA mAs:0.1mAs~630mAs Focus (Rotary Anode):0.6/1.2mm Anode Heat Content:210kJ Sleeve Heat Content:900kJ Anode Speed:9700rpm AEC:It have AEC function

Specifications

High Frequency X-ray Radiolography System EKONHX07B:

Power Output:65KW Inverter Frequency≧60KHz Tube Voltage:40KV~150KV Tube Current For digital Radiography:10mA-650mA mAs:0.1mAs~630mAs Focus (Rotary Anode):0.6/1.2mm Anode Heat Content:210kJ Sleeve Heat Content:900kJ Anode Speed:9700rpm AEC:It have AEC function

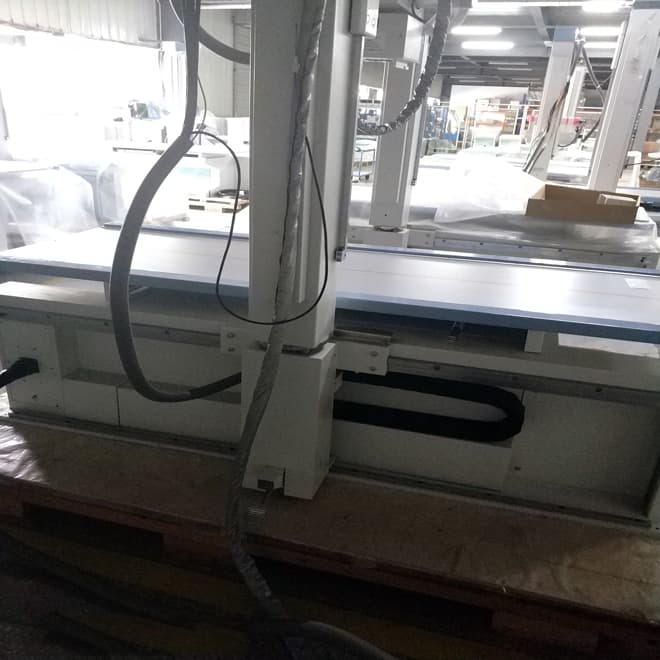

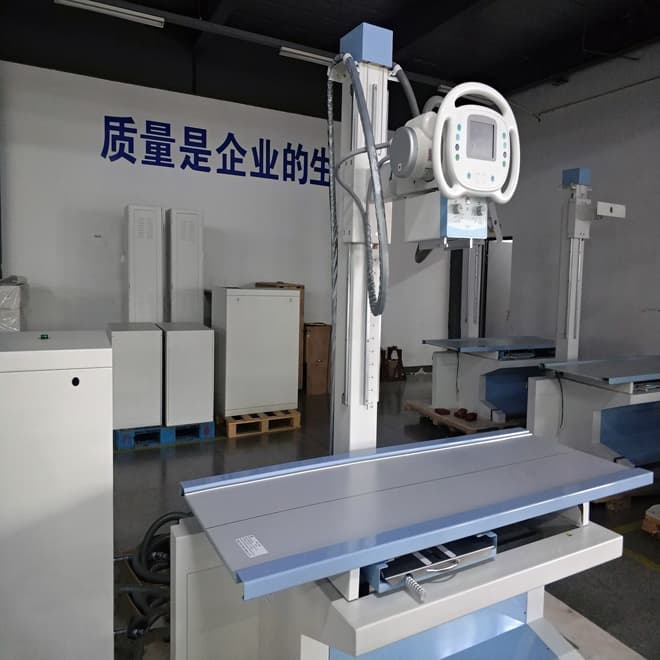

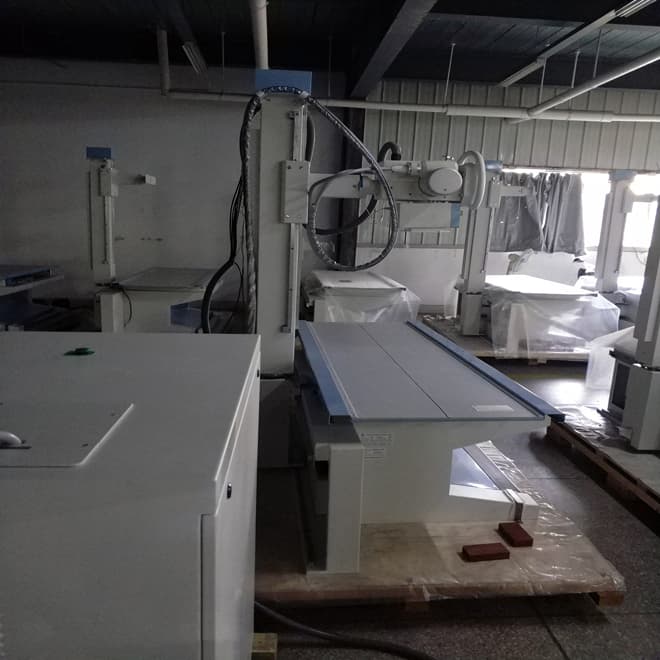

Photography Bed: *Length:2000mm *Width:760mm *Height:≤700mm *Longitudinal remove range:≥900mm *Transverse remove range:≥220mm *Cassette film size:14''*17'' *Cassette longitudinal range:≥560mm Panel Detector: CSI, 14*17,150μm,14bits,3.4lp/mm Workstation:CPU i3, 8G+1TB, 24inches LCD,1920*1200

Arm Movement: *SID: 450mm～1200mm

*X ray tube assembly longitudinal movement range along bed: ≥1370mm

*X ray tube assembly can rotate around its axis≥±90°

*X ray tube assemble can rotate around its axis≥35°

*X ray tube assemble can rotate around column axis: 4*90°

Packing size:1# 2250*1400*1000mm 2# 1200*1150*1430mm 3#1070*700*830mm Weight: 1#Main machine, X ray tube, operator station and bucky stand: NW: 685kgs GW: 880kgs 2#Electrical cabinet and High pressure tank: NW: 200kgs GW: 360kgs

Highlights:

1. Near the desktop graphical control color touch LCD screen parameter configuration, remote distance remote exposure system operation is simple and clear, the use of safe and convenient. 2. Human body graphical touch screen with multi-site, type into children and other characteristics of photographic parameters, the user can modify and save the parameters of their own, touch-screen LCD display adjustment to make the operation more simple. 3. Using KV closed-loop control and mAs digital closed-loop control technology, the microprocessor realizes the accuracy and repeatability of the output dose in real time. 4. KV, mAs two button or kV, mA, s three button system two kinds of photography mode can choose, better meet the professional requirements of different users. 5. The photographic bed can be any direction of floating, electromagnetic system to make the positioning of the patient more accurate; 6. The X-ray tube assembly is rotatable about the X-ray tube shaft, the cross arm and the post bracket to facilitate lateral and oblique projection and photographic photography on the stretcher. 7. Optional simple and compact graphical control color touch LCD screen console, compartment can be set for photography parameters and exposure. 8. Bucky radiograph, to meet the skull, abdominal pelvic spine and peripheral peripheral allele photography examination; 9. With a number of automatic protection and fault code prompts the function, the use of more secure and reliable.
