Professional nerve block anesthetic ultrasound EKONCU57

Quick Details

EKONCU57 series is industry first dedicated ultrasound for anesthesia. She redefines standard for professional anesthetic ultrasound by providing best in detail image and customized design. EKONCU57 is indispensable to an anesthesiologist as previously difficult scenarios are converted to simpler tasks. “Seeing is believing” they say, and with device there will be no more stabbing in the dark!

Specifications

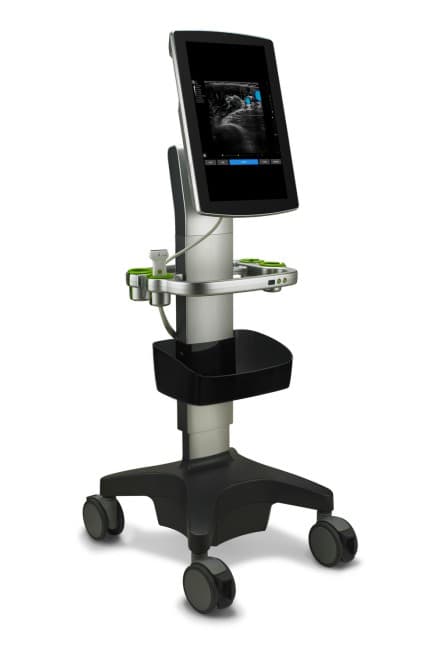

Professional nerve block anesthetic ultrasound EKONCU57

Features:

19-inch Industry Largest Touch Screen

Whole Day Duration Battery

Continuous scan greater than 7 hours, independent battery duration display, retractable battery design

Probe Button

3 buttons,function display interface, remote control

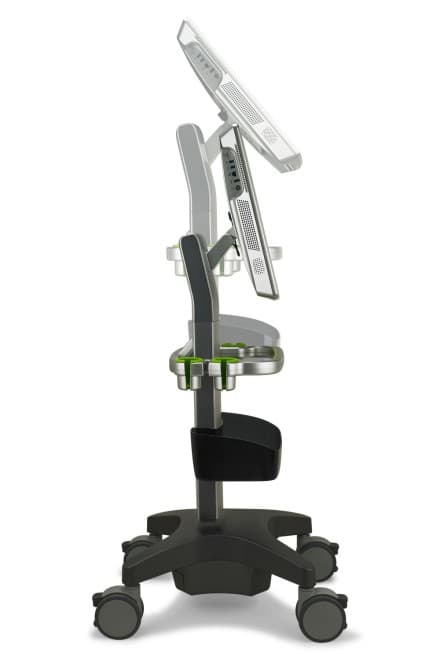

Electric Height Adjustable

One button height adjustment 30cm height range

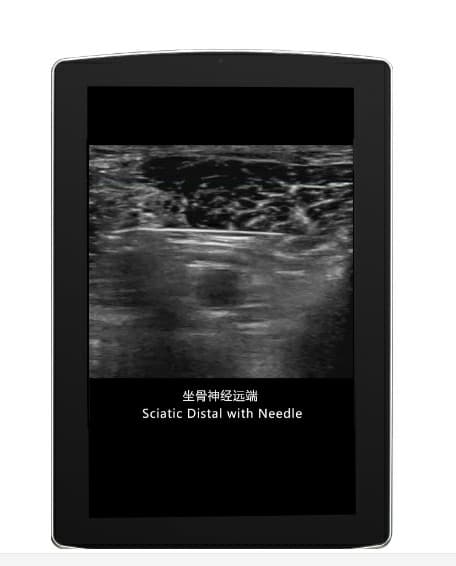

wiNeedle Intelligent Enhance

Real-time detection, automatic beam steer, intelligent needle shaft and tip enhance

wiLearn Education Center

Built-in comprehensive online education content, learn with ultrasound image and anatomical graphs

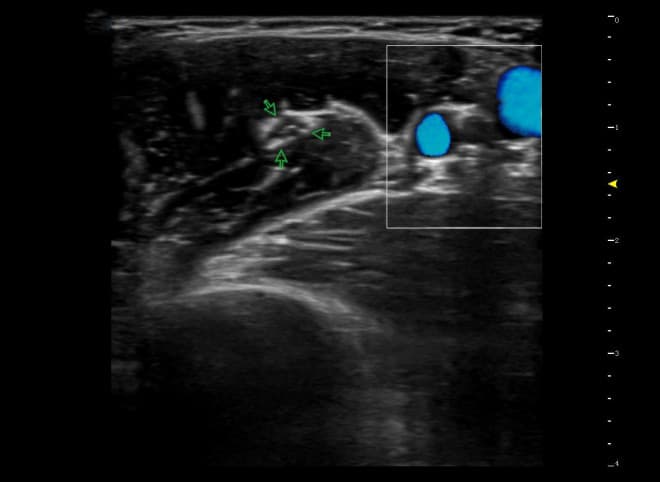

Exceptional imaging Quality

Professional nerve block anesthetic ultrasound EKONCU57

1. System Overview

The Navi series syetem is a high performance dedicated POC system, simple to use, and durable with best-in-class image quality. Navi has unique designs providing best POC experience especially for anesthesia.

1.1Application

Abdomen

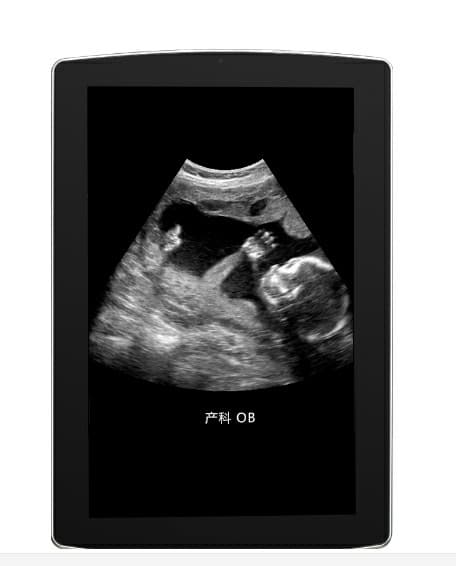

Obstetrics

Gynecology

Cardiology

Small Parts

Urology

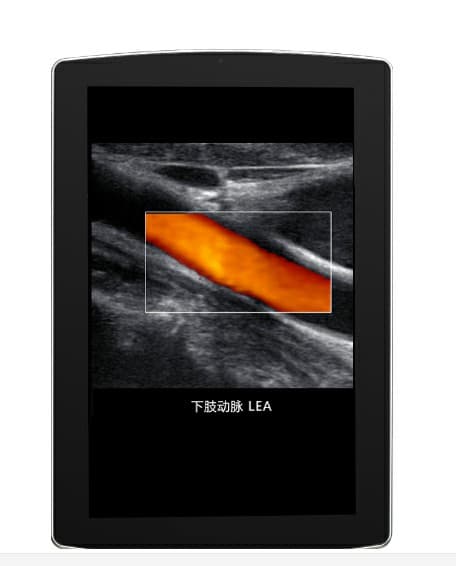

Vascular

Pediatrics

Emergency Medicine

Nerve

Others

1.2Transducer Type

Convex Array

Linear Array

Phased Array

1.3Imaging Modes

B Mode

Harmonic Imaging

M Mode

Color Doppler Imaging

Directional Power Doppler Imaging

PW Doppler

CW Doppler

1.4Standard Features

B Mode

Harmonic Imaging

M Mode

Color Doppler Imaging

Directional Power Doppler Imaging

PW Doppler

wiNeedle Intelligent Needle Enhance Visualization

Spatial compounding imaging (SCI)

Time-spatial speckle suppression imaging (imaging enhancement)

One key auto B imaging optimization

Auto Doppler imaging optimization

FZoom (Full Screen Zoom)

ExFOV(Extended FOV)

Clinical Application Packages

240GB SSD

Battery

2 USB 3.0 Ports

HDMI

Ethernet Port

WIFI Adaptor

1.5Optional Features

CW

4G Network Adaptor

Extra Battery

wiLearn Education Center

ECG

Probe Adapter (Extra 3 ports)

Footswitch (2 pedals)

IMT

DICOM

wiGuide (Magnetic Needle Tracking)

1.6Language

Software: English, Chinese

Keyboard Input: English, Chinese, Germany

User Manual: English, Chinese

Professional nerve block anesthetic ultrasound EKONCU57

2. Physical Spec

2.1System Dimension and Weight

Height: 1400~1700mm

Width: 486mm

Depth: 520mm

Weight: Around 36.4kg (Include Battery)

2.2Main System Dimension and Weight

Height: 489mm

Width: 330mm

Depth: 74mm

Weight: Around 6.7kg

2.3Monitor

19-Inch LED

Resolution: 1680x1050

Brightness Adjustable

Max Vertical Rotation Angle:36°

2.4Audio Output

High Quality Speaker

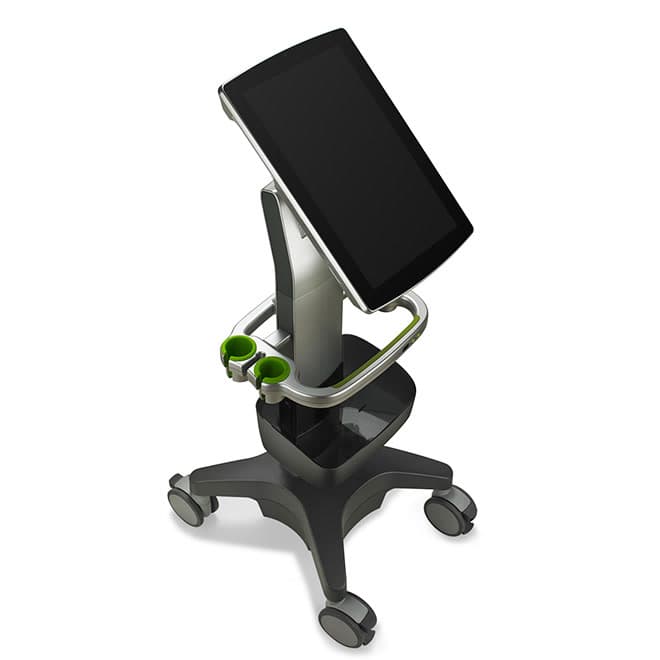

2.5Trolley

Height Range: 300mm

Wheel Diameter: 125mm

Wheel (4): Break and Lock

2.6Transducer Holder and Port

Connection Ports: 2 Fully Active

Holder: 4 Including 2 for Disinfection

2.7 AC Adapter

Model:MANGO120-19AD-WIS

Voltage: 100-240V~

Frequency: 50/60 Hz

Currency: 2.0-1.0A

Output: 19V,6.3A

2.8Battery

Model: LI14I13A

Lithium-Ion, 14.4V, 13000mAH

Charge to Full: 8 hours

Max Duration: 7 hours realtime scan

2.9Operating Evironment

Temperature: 0-40 °C

Humidity: 30%-85% (non-condensing)

Pressure: 700hPa-1060hPa

2.10Storage and Transport

Temperature: -20-55 °C

Humidity: 30%-95%(non-condensing)

Pressure: 700hPa-1060hPa

3. User Interface

3.1Touch Screen

19-inch touch screen

Support multi-gesture

Intuitive icon designed user interaction

Liquid disinfection supported

3.2Boot-up and Power off

Hard boot-up in 30s

Power off in12s

Quick recover from sleep in 5s

3.3Comment

Text and arrow available

Size of text and arrow adjustable

Set home position for comment initiation

Full packages for all application

User-defined text

3.4Bodymark

Over 200 bodymark patterns for all application

Support transducer mark

3.5Screen Info*

Displayed Info:

-Wisonic Logo

-Hospital Name

-Exam Date

-Exam Time

-Acoustic Power

-MI

-Thermal Index

-ID, Name

-Probe

-TGC Curve

-Focus Position

-Image Parameters

*Not all items are listed in here, please refer to user manual for detailed info.
