Lab Equipment > Blood gas analyzer machine

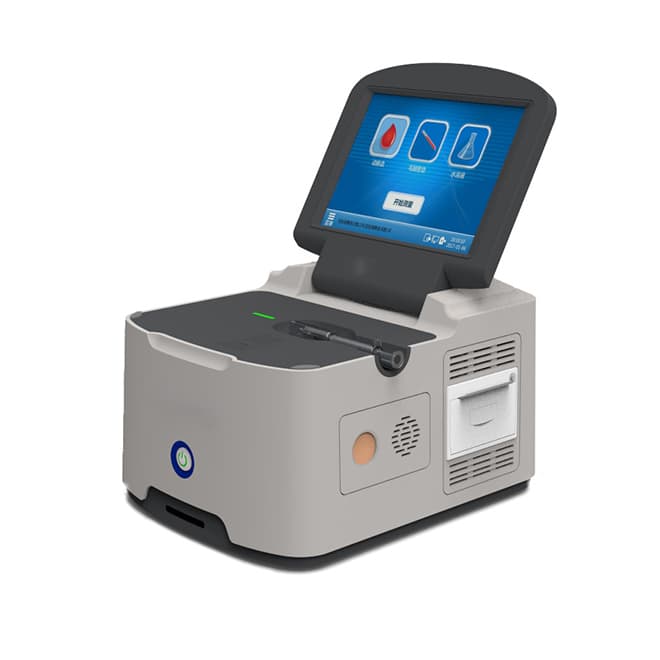

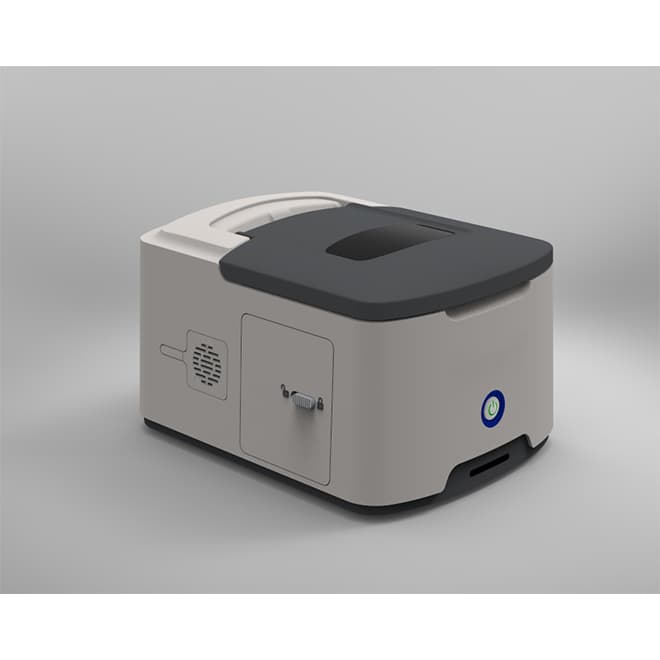

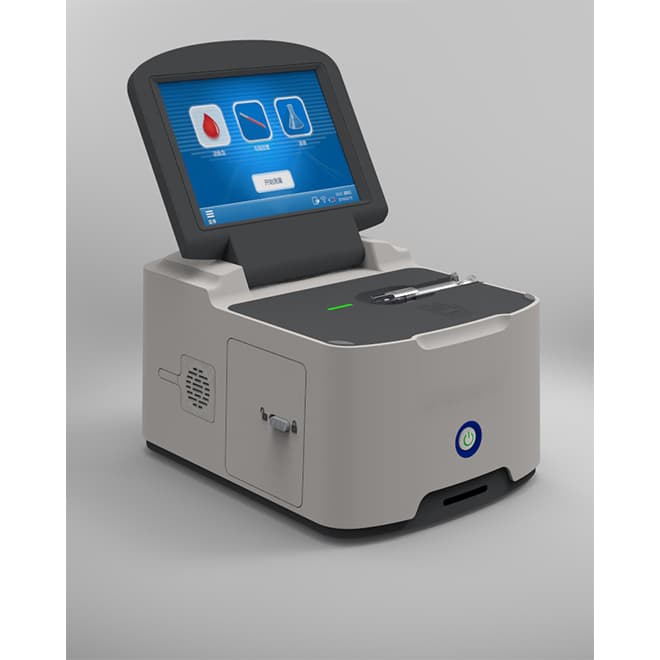

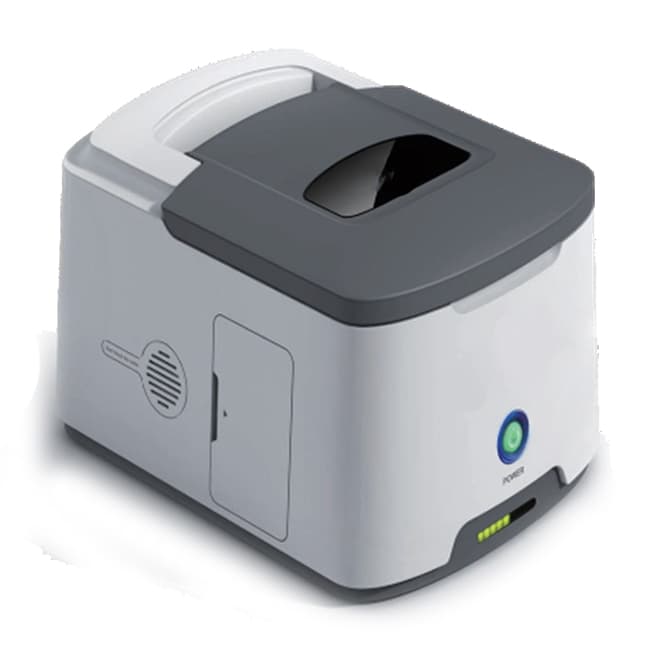

Purchase Professional Blood Gas Analyzers EKONBGA01 from Medsinglong

MODEL / EKONBGA01

Purchase Professional Blood Gas Analyzers EKONBGA01 from Medsinglong. Touch Screen : Resistance-type single point touch screen

Intuitive Touch screen
Infrared human-detector
Flexible and simple calibrants cartridge
Auto QC cartridge

Contact a Product Advisor

PRODUCT OVERVIEW

Product Details

Quick Details

Size: 302*226＊180 mm (length*width*height) Liquid Crystal Display: 8 inch,1024*768, colour TFT Touch Screen: Resistance-type single point touch screen Weight: No more than 6.5 kg (including battery but no power adapter)

Specifications

Features of Blood Gas Analyzer EKONBGA01:

1.Intuitive Touch screen 2.Infrared human-detector 3.Flexible and simple calibrants cartridge 4.Auto QC cartridge 5.Rich data management 6.Fast data input 7.Reliable and convenient measurement unit

Specification of Blood Gas and Chemistry Analyzer EKONBGA01:

Size: 302*226＊180 mm (length*width*height) Liquid Crystal Display 8 inch,1024*768, colour TFT Touch Screen Resistance-type single point touch screen Weight: No more than 6.5 kg (including battery but no power adapter) Power Supply Working Voltage:100 - 240 V Current Input: 1.2 A-0.5 A Working Frequency: 50 /60 Hz Battery: 14.8 VDC/5000 mAh USB Interface: 4 USB Interfaces Serial Port: DB9 Barcode Scanner: Built-in Printer: Built-in thermal printer and thermal paper Printing Width: 8 mm Test time: Provide test result in 70 seconds (from sample introduction to results coming out)

TECHNICAL DATA

Technical Specifications

Technical parameters from the currently available product information.

Liquid Crystal Display: 8 inch,1024*768, colour TFT
Touch Screen: Resistance-type single point touch screen
Working Voltage: 100 - 240 V
Current Input: 1.2 A-0.5 A
Working Frequency: 50 /60 Hz
Battery: 14.8 VDC/5000 mAh
USB Interface: 4 USB Interfaces
Serial Port: DB9
Printer: Built-in thermal printer and thermal paper
Printing Width: 8 mm
Test time: Provide test result in 70 seconds (from sample introduction to results coming out)

Specifications can vary by configuration. Confirm intended use, final model, and supply details with our product team.
