Purchase Veterinary Potable X-ray Machine EKONPX33V from Medsinglong

MODEL / EKONPX33V

Purchase Veterinary Potable X-ray Machine EKONPX33V from Medsinglong. Support battery-powered and 220VAC.

6KW / 8.0KW extra power.
Support battery-powered and 220VAC.
Touch screen APR design, more convenient application
Portable Battery (Optional)

Contact a Product Advisor

PRODUCT OVERVIEW

Product Details

Quick Details

5.6KW / 8.0KW extra power. Support battery-powered and 220VAC. Multipurpose, lightweight. Ideal for home medical care or emergencies.

Specifications

Features of Veterinary Potable X-ray Machine EKONPX33V:

Touch screen: Integrated 7 Inches capacitive display Touch screen APR design, more convenient application Support MultiTouch Wearproof, long service life and low maintenance costs.

Highlight: 5.6KW / 8.0KW extra power. Support battery-powered and 220VAC. Multipurpose, lightweight. Ideal for home medical care or emergencies.

Application scene: Emergency Indoor shooting Oversea voyage

Portable Battery (Optional): Integrated design, small dimension, light weight and large capacity The fully charged battery can take 200 images Support 110V, 220V charging, convenient and fast chargin Dimension: 111mm•188mm•486mm.

Specification of Veterinary Potable X-ray Machine EKONPX33V:

kVp Voltage 40-125kV (Increasing rate 1kV) mAp Current Gears5.0、6.3、8、10、12.5、16、20、25、32、40、50、63、80、100、125、160 Exposure Time 3.2ms-10smAs 0.1-250mAs Working Frequency 100kHz X Ray Tube 0.6mm-1.5mm(40HU 4.0kW)/ 0.6mm-2.8mm(76HU 8.0kW) APR 20programs Power source 220VAC-240VAC / Battery (Optional ) Weight 15Kg Dimension 230mm ×250mm×220mm Note: Battery external

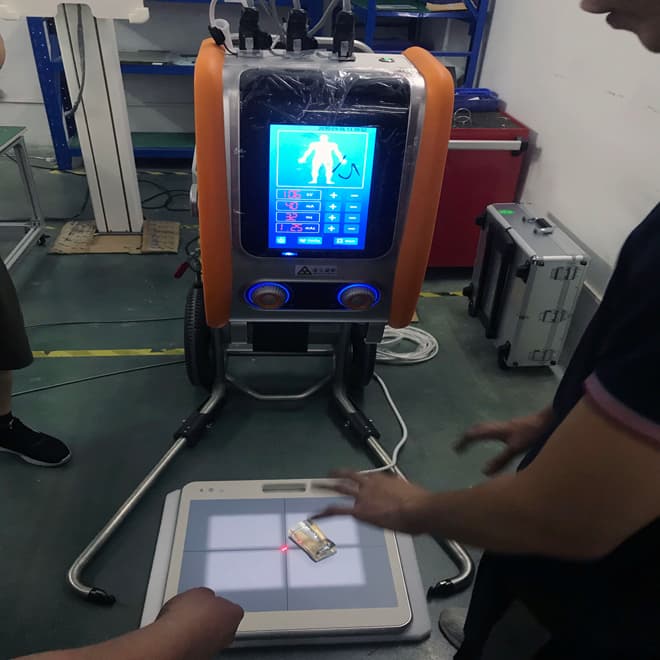

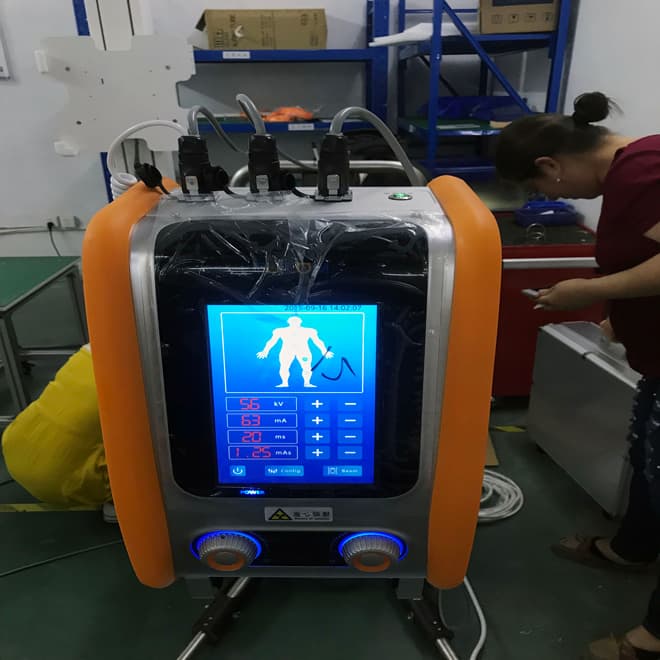

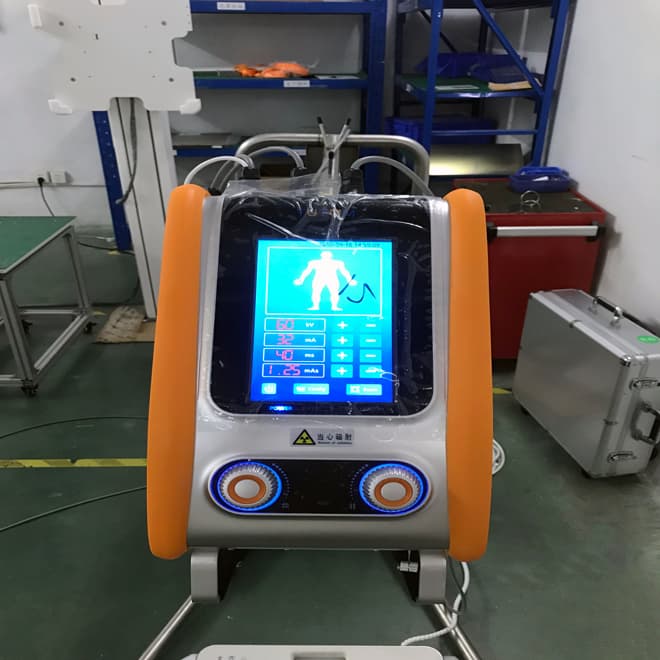

Client Usage Photos of Veterinary Potable X-ray Machine EKONPX33V

TECHNICAL DATA

Technical Specifications

Technical parameters from the currently available product information.

Support battery-powered and: 220VAC.
The fully charged battery can take: 200 images
Dimension: 111mm•188mm•486mm.
kVp Voltage: 40-125kV (Increasing rate 1kV)
Working Frequency: 100kHz
X Ray Tube: 0.6mm-1.5mm(40HU 4.0kW)/ 0.6mm-2.8mm(76HU 8.0kW)
Power source: 220VAC-240VAC / Battery (Optional )
Note: Battery external

Specifications can vary by configuration. Confirm intended use, final model, and supply details with our product team.
