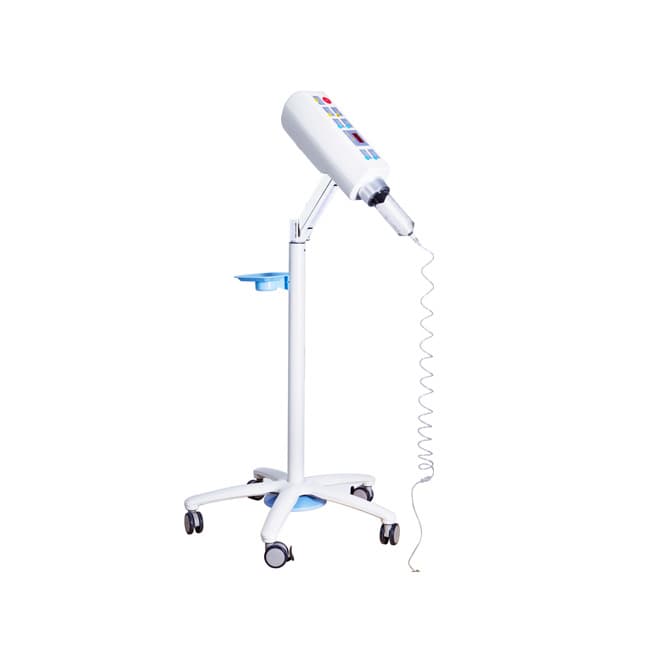

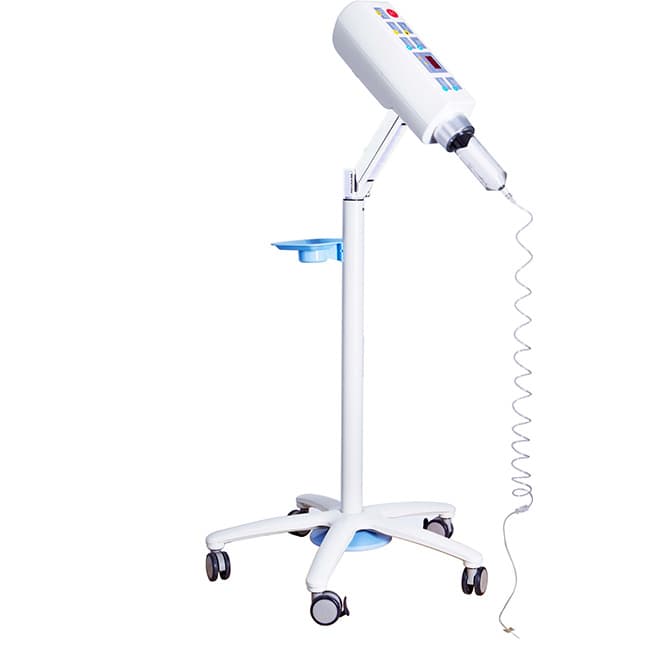

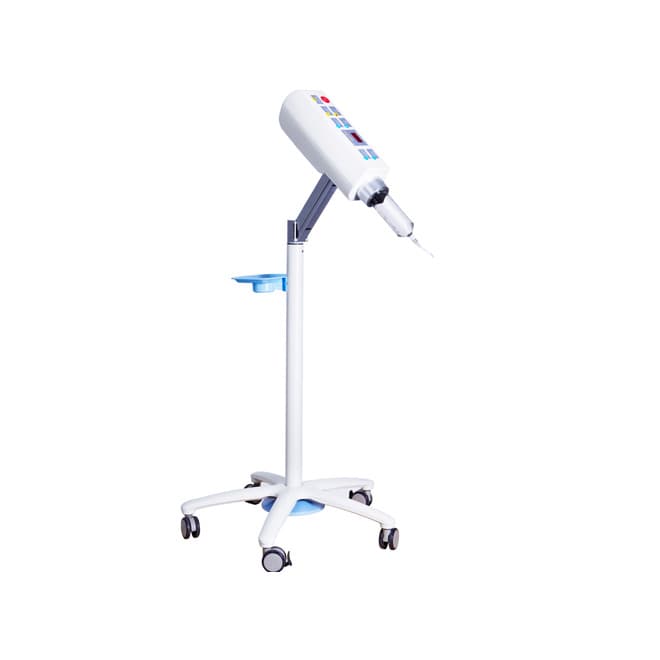

Single syringe CT injector machine EKONGT01 with color touch screen

Quick Details

Injection pressure displaying in real time Friend user interface with a large LCD touch screen Swiveling injector arm on a mobile stand Overhead suspension system of injector arm (option) Secured injection position judged by a sensor detecting injector arm angle Programable Auto-fill volume & flow rate

Specifications

Single syringe CT injector machine EKONGT01 Specification

Injector Arm and Pedestal Length: 27.6″(70.0cm) Width: 27.6″(70.0cm) Height: 49.2″(125.0cm) Weight: 16.5kg

Dimension: Length: 4.55″(11.55cm) Width: 12.68″(31.8cm) Height: 9.77″(24.81cm) Weight: 4.1 Kg Color Touch Screen

Main Control Box Dimension: Length:11.9 ″ (30.2cm) Width:7.4 ″ (9.1cm) Height:4.7″( 12cm) Weight: 6.2 Kg

Single syringe CT injector EKONGT01 Operation

Interface Selectable in English, French, German and Chinese Flow Rate 0.1 mL/sec. to 10 mL/sec. in 0.1 mL/sec. increments Syringe Capacity 100ml for Zenith-C10; 200ml for Zenith-C20 Volume 0.1 ml to syringe capacity in 0.1 ml increments

Pressure Preset limit: 300 psi default, user settable from 50 to 350 psi in 1 psi increments Display: Real-time pressure curve Change threshold: Stop injection if pressure changing suddenly Alarm: Voice alarm and stop injection when over preset limit Injection or Scan Delay 0 to 3599 seconds in 1 sec. increments Autofill Settable flow rate from 3ml/sec. to 8ml/sec., volume from 10ml to syringe capability Multi-Phase 1-8 phases per injection Pause Phase 0~999 sec. in in 1 sec. increments Hold Capability More than 30 minutes Storage Capabilities 100 protocols
