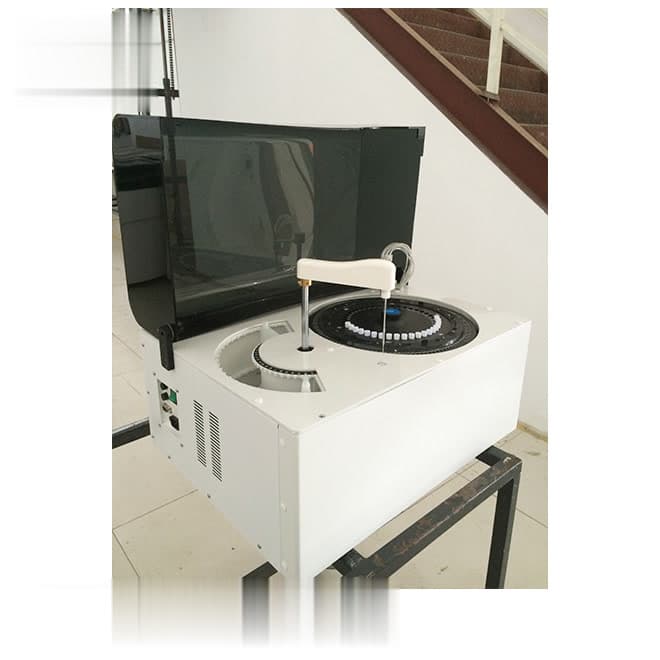

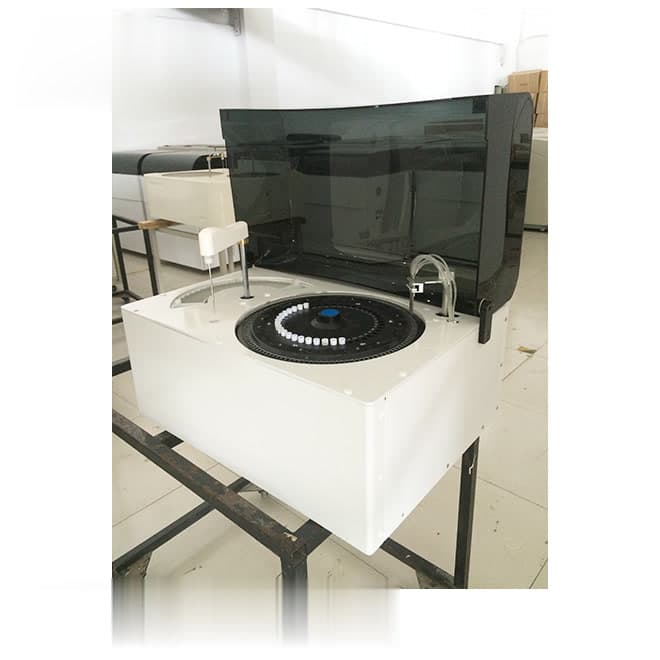

Small size fully automatic chemistry analyzer EKONBA23PLUS
MODEL / EKONBA23PLUSBy using the principle of colorimetry and turbidimetry, chemistry analyzer EKONBA23PLUS is fully automatic, discrete, STAT priority with high quality.
- By using the principle of colorimetry and turbidimetry, chemistry analyzer EKONBA23PLUS is fully automatic, discrete, STAT priority with high quality.
- Report printing: Report formats support the user-defined mode, QC and state information etc.
- EKON Medical cooperate with DHL,FEDEX,UPS,EMS,TNT,etc.International shipping company,make your goods? arrive destination safely and quickly.
Product Details
Quick Details
By using the principle of colorimetry and turbidimetry, chemistry analyzer EKONBA23PLUS is fully automatic, discrete, STAT priority with high quality.
Specifications
Small size fully automatic chemistry analyzer EKONBA23PLUS
Chemistry analyzer EKONBA23PLUS introduction:
Overall Performance
Equipment type: Fully automatic discrete, STAT priority
Analysis rate: Constant speed 160T/H (without ISE)
Test principle: Colorimetry, turbidimetry
Analysis method: End-point, 2 kinetics, fixed-time, etc. support single/double wavelength, linear and non-linear calibration
Sample System
Sample Tray: 42 sample positions, random access of all samples
Sample Volume: 2-50ul, 0.1ul increment
Sample probe: Liquid level detection, the remaining detection, collision protection etc.
Sample Containers: Sample cups, Micro tube, Original blood-collection tube, etc.
Reagent System
Reagent Tray: 25 reagent positions
Reagent Volume: R1:25-300ul, R2:10-150ul, 0.1ul increment
Reagent Probe: Liquid level detection, the remaining detection, collision protection etc.
Reagent Refrigeration: 4-15℃, independent power supply, 24-hour non-stop refrigeration
Reaction System
Reaction Tray: Rotating tray, 120 cuvettes
Cuvette: Reusable high quality cuvette, Optical diameter 6mm
Reaction Volume: 180-500ul
Incubation system: Bi-directional liquid-air device
Temperature: 37℃±0.1℃ with real-time display
Optical System
Light source: 12V35W halogen lamps, over 2000 hours
Photoelectron road: after spectrophotometry
Wavelength: 340,405,450,510,546,578,630,700nm
Absorbance range: 0-3.500Abs
Resolution: 0.0001Abs
Operating System
PC operating system: Windows XP or above
Analysis control software: English version graphical operating software
Report printing: Report formats support the user-defined mode, QC and state information etc.
System connection: RS-232
Working Conditions
Power supply: AC 220V±22V, 50Hz±1Hz, power 1.5KVA
Ambient Temperature: 15-30 ℃
Humidity: 35-80%
Water consumption: 5L/Hour
Dimension: Bench top: 750mm*520mm*600mm
Weight: 45KG
MSL TEAM picture
Welcome to medicalequipment-msl.com,If you have any demand in ultrasound machine.
Technical Specifications
Technical parameters from the currently available product information.
- Equipment type
- Fully automatic discrete, STAT priority
- Analysis rate
- Constant speed 160T/H (without ISE)
- Analysis method
- End-point, 2 kinetics, fixed-time, etc. support single/double wavelength, linear and non-linear calibration
- Sample Tray
- 42 sample positions, random access of all samples
- Sample Volume
- 2-50ul, 0.1ul increment
- Sample probe
- Liquid level detection, the remaining detection, collision protection etc.
- Sample Containers
- Sample cups, Micro tube, Original blood-collection tube, etc.
- Reagent Tray
- 25 reagent positions
- Reagent Volume
- R1:25-300ul, R2:10-150ul, 0.1ul increment
- Reagent Probe
- Liquid level detection, the remaining detection, collision protection etc.
- Reagent Refrigeration
- 4-15℃, independent power supply, 24-hour non-stop refrigeration
- Reaction Tray
- Rotating tray, 120 cuvettes
- Cuvette
- Reusable high quality cuvette, Optical diameter 6mm
- Reaction Volume
- 180-500ul
- Temperature
- 37℃±0.1℃ with real-time display
- Light source
- 12V35W halogen lamps, over 2000 hours
- Wavelength
- 340,405,450,510,546,578,630,700nm
- Absorbance range
- 0-3.500Abs
Specifications can vary by configuration. Confirm intended use, final model, and supply details with our product team.
