Superior 17 x 17-inch Cassette-size Flat Panel Detector EKONPBT06 Flat Panel Detector for X-ray/Wireless X-ray Detector

MODEL / EKONPBT06

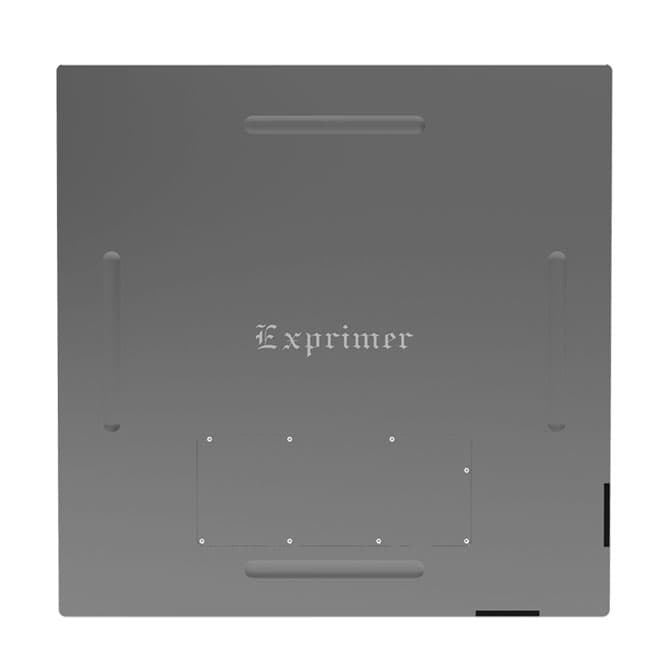

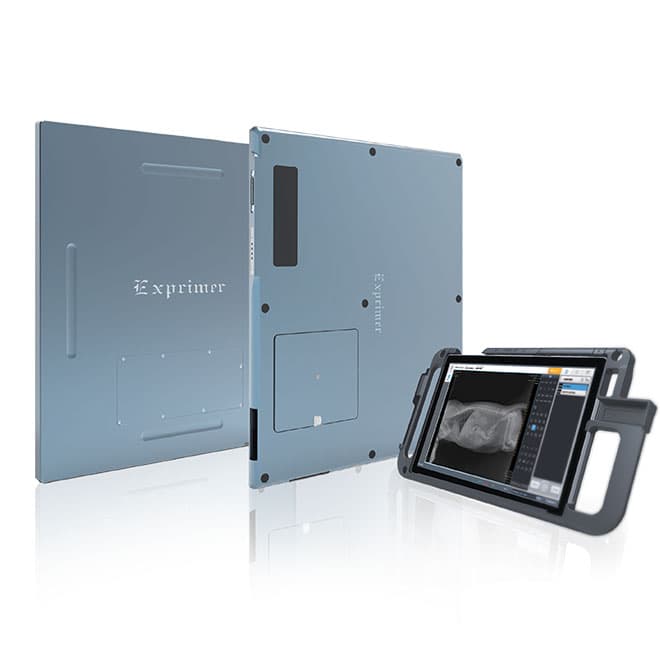

EKONFP06 is a smart 17x17-inch wireless, cas-sette-sized FPD for radiographic imaging. It features reli-able AED, dependable wireless performance, and a long battery life. The EKONFP06 supports a fast work flow, and is the optimal choice for both retrofit and new DR system solutions.

Wireless cassette detector per ISO 4090, fits in bucky
Stable iSync+ Automatic Exposure Detection (AED)

Contact a Product Advisor

PRODUCT OVERVIEW

Product Details

Quick Details

Specifications

Features of Superior 17 x 17-inch Cassette-size Flat Panel Detector EKONPBT06

Wireless cassette detector per ISO 4090, fits in bucky
139 pm pixel pitch, with 16 bit ADC for more image details
Stable iSync+ Automatic Exposure Detection (AED)

Specification of Superior 17 x 17-inch Cassette-size Flat Panel Detector EKONPBT06

Client Usage Photos of Superior 17 x 17-inch Cassette-size Flat Panel Detector EKONPBT06

TECHNICAL DATA

Technical Specifications

Technical parameters from the currently available product information.

Wireless cassette detector per ISO: 4090, fits in bucky
9 pm pixel pitch, with: 16 bit ADC for more image details
Detector Technology: Amorphous Silicon
Scintillator: Csl
Active Area (mm'): 427x427
Pixel Matrix: 3027x3027
Pixel Pitch (um): 139
Resolution (Ip/mm): 3.6
AD Conversion (bit): 16
Battery Autonomy (h): 5
WIFI: 2.4G and 5G, IEEE802.11 a/b/g/n/SO
Trigger Mode: AED/Software
Full Image Time (s): Typ.5
Dimension (mm): 460 x 460 x 15
Weight (kg): 4.6
Operating Temperature ('C): 5-35
Operating Humidity: 10%-90%
Storage & Transport Humidity with Package: 5%-95%

Specifications can vary by configuration. Confirm intended use, final model, and supply details with our product team.
