Ultrasound > Veterinary Ultrasound

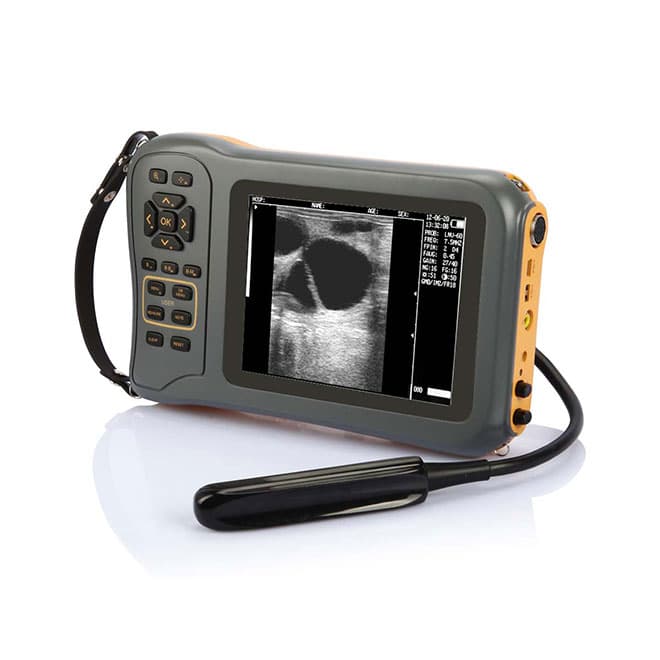

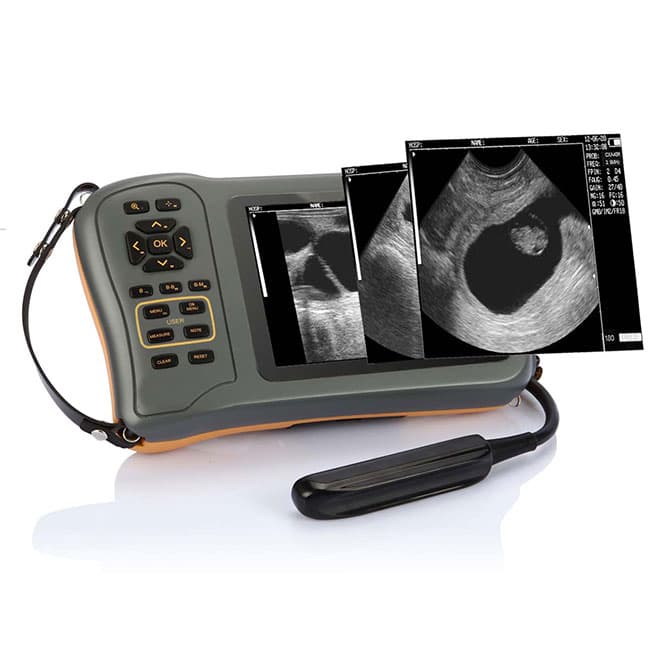

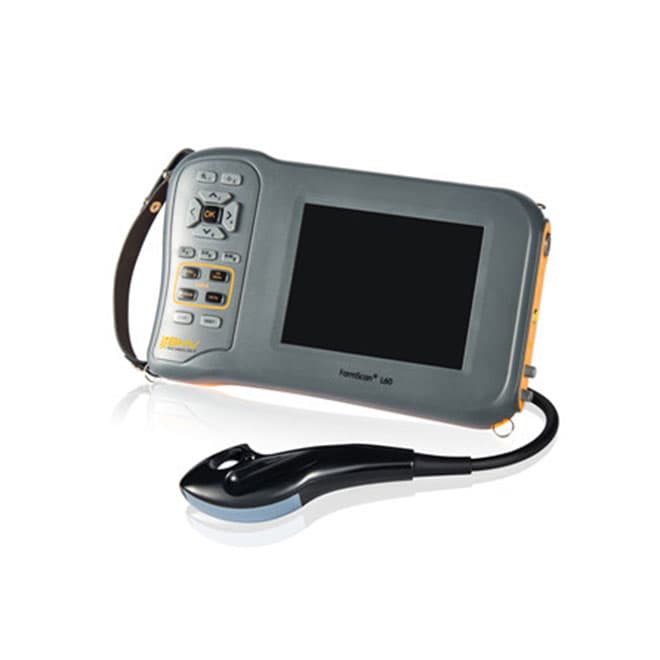

The Mini Portable Versatile Ultrasound Machine EKONVU42 For Sale

MODEL / EKONVU42

The Mini Portable Versatile Ultrasound Machine EKONVU42 For Sale. Application: equine, bovine, sheep, swine, dog, cat, etc.

PRODUCT OVERVIEW

Product Details

Application: equine, bovine, sheep, swine, dog, cat, etc.

Display Modes: B/B+B/4B/B+M/M

Scanning Depth: 220mm, 8-adjustable level (image multiplying factor)

Application: equine, bovine, sheep, swine, dog, cat, etc.

Display Modes: B/B+B/4B/B+M/M

Scanning Depth: 220mm, 8-adjustable level (image multiplying factor)

Gray Scales: 256

Monitor: 5.8 TFT-LCD

Port: one mouse port/one Video (PALD, NTSC)/one USB 2.0

Weight:≤650g

Measurements: distance, circumference, volume, EF rate, heart rate, time

OB Measurement: GS, BL, HL, SL, USD, HD, BD, CRL, EDD, GA

Operation Interface: Chinese/English

Comments: date & time, hospital, name, age, sex

Report: available

Image Processing (IP): available

Cine-loop: ≥400frames

Conversion: up/down, left/right

Pseudo Color: 3

Histogram: available

Image Smooth:≥4 grade

Gama Correction: available

Probe:

convex (2.5MHz/3.5MHz/5.0MHz) micro convex (4.5MHz/5.0MHz/5.5MHz) HF linear (5.5MHz/7.5MHz/8.5MHz) endo-rectal (5.5MHz/6.5MHz/7.5MHz)

TECHNICAL DATA

Technical parameters from the currently available product information.

Specifications can vary by configuration. Confirm intended use, final model, and supply details with our product team.
