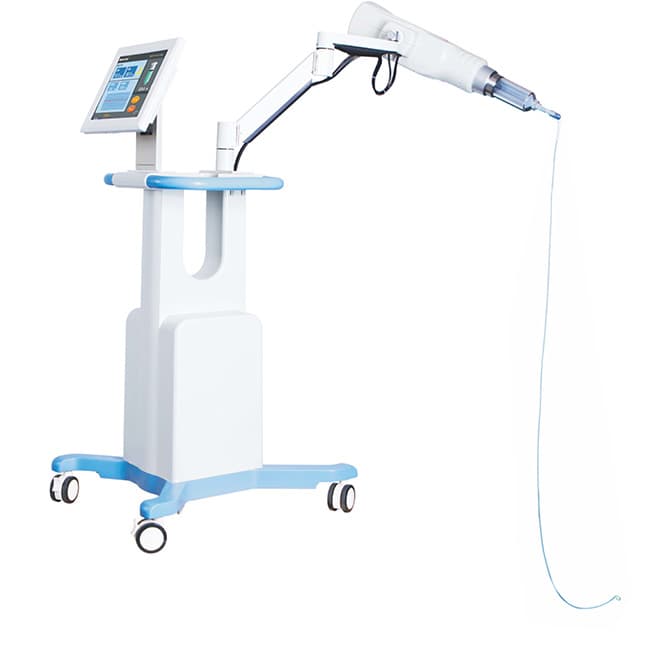

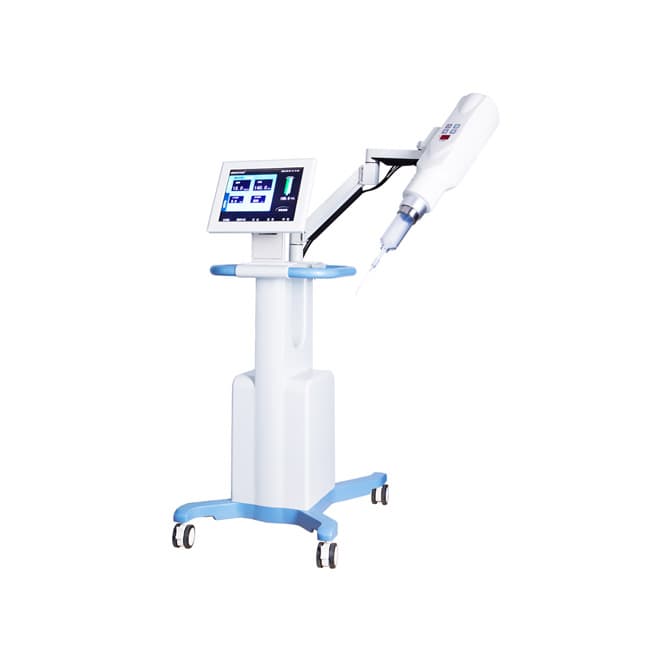

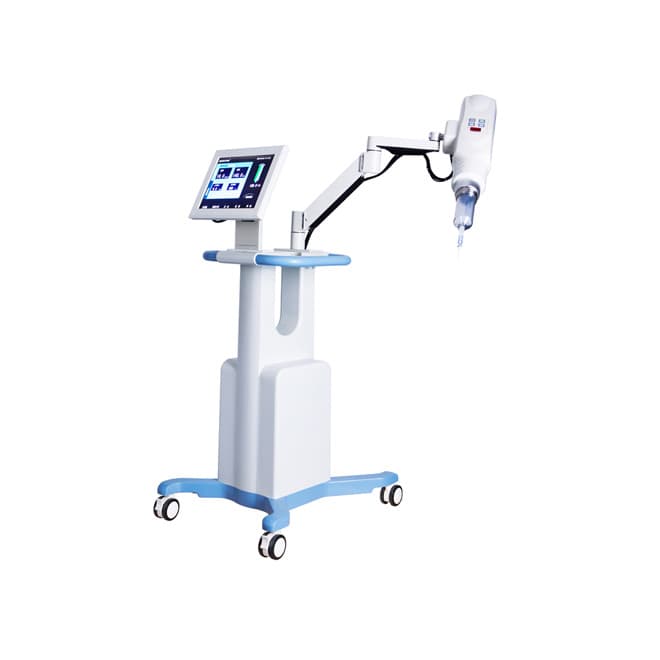

Touch Screen DSA Injector machine EKONGT03 for Sale | MRI Injector Price

Quick Details

Length: 4.55″(11.55cm) Width: 12.68″(31.8cm) Height: 9.77″(24.81cm) Weight: 4.1 Kg Syringe Capacity: 150ml Pressure Limit: settable from 300 psi to 1200 psi

Specifications

DSA Injector machine EKONGT03 Specification

Dimension Length: 27.6 ″ (70.0cm) Width: 21.3 ″ (54.0cm) Height: 53.6 ″ (136.0cm) Weight 27.5kg Control Room Console (Optional)

Touch Screen DSA Injector machine EKONGT03 Dimension:

Length: 4.55″(11.55cm) Width: 12.68″(31.8cm) Height: 9.77″(24.81cm) Weight: 4.1 Kg

Electrical Requirements a.c.220V, 50Hz, 800VA Console Color Touch Screen Operation Interface Selectable in English, French, German and Chinese Flow Rate 0.1 to 50 ml/sec. in 0.1 ml/sec. increments Volume 0.1 ml to max. syringe capacity Rise Time 0.1~1.0 sec., in 0.1 ml increments

Syringe Capacity 150ml Pressure Limit settable from 300 psi to 1200 psi (2070~8280kPa) in 1 psi increments Pressure Display display real-time pressure curve Pressure Threshold: automatically stop injection when pressure over the threshold Pressure warning alarm and stop injection when over preset pressure limit Injection or Scan

Delay: 0 to 3599 seconds in 1sec. increment Autofill settable flow rate from 3ml/sec. to 8ml/sec., volume from 10ml to syringe capability

Multi-Phase 1-8 phases per injection Pause 0~999 sec. in 1 sec. increments Hold Capability More than 30 minutes Storage Capabilities 100 protocols
