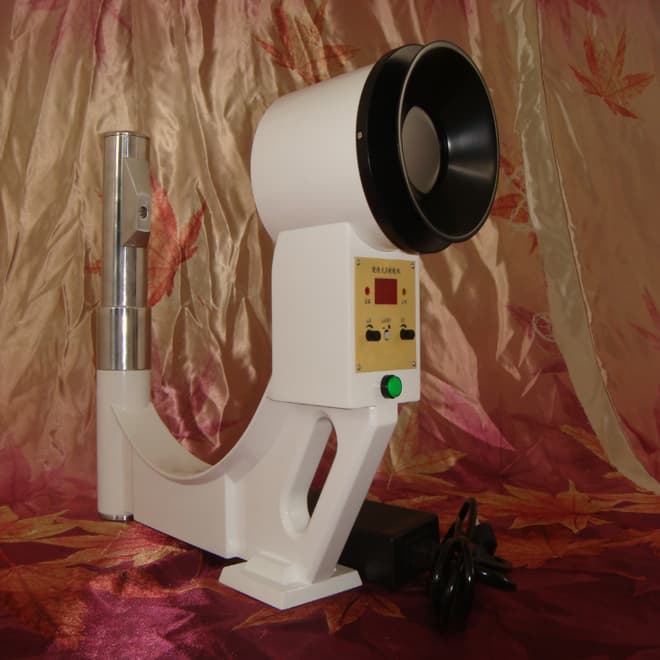

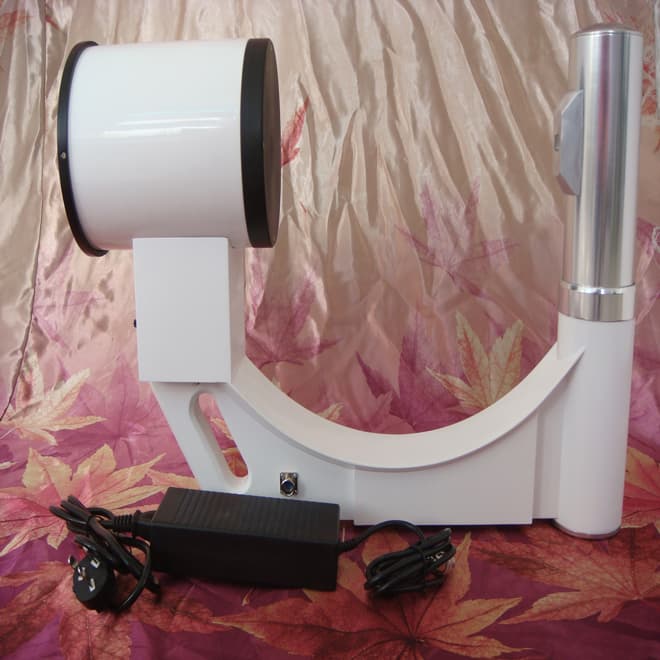

Veterinary Portable Mobile X-ray Imaging System EKONPX32plus price

Quick Details

Output Image size:≤φ100mm（4 inches） Survey thickness:≤300mm X-ray tube voltage:45-90KV adjustable Voltage deviation:≤10% X-ray tube current:0.25-0.5mA adjustable Current deviation:≤20% Position deviation:±1mm Resolution:≥3lp/mm Operating frequency:20Khz X-ray leakage rate:≤0.33mGy/h Net Weight:≤5 KG Power Consumption:≤200VA Input current:AC220V±10% Optional functions:Refer to “Optional function list 1”

Specifications

Working Principle/Organization Structure:

It uses X-ray to penetrate the measured object. The visible image is displayed on the screen in front of the X-ray receiver （impact enhancer）. It consists of high voltage generator, X-ray tube, X-ray receiver, beam, frame, adapter et al..

Scope of Application:

It’s mainly used in hospital orthopedics as for limbs, other smaller & thinner parts for X-ray diagnosis. Veterinary diagnostic Scientific research and Testing occasions Other Non-destructive Testing applications

Product Parameters:

Output Image size:≤φ100mm（4 inches） Survey thickness:≤300mm X-ray tube voltage:45-90KV adjustable Voltage deviation:≤10% X-ray tube current:0.25-0.5mA adjustable Current deviation:≤20% Position deviation:±1mm Resolution:≥3lp/mm Operating frequency:20Khz X-ray leakage rate:≤0.33mGy/h Net Weight:≤5 KG Power Consumption:≤200VA Input current:AC220V±10% Optional functions:Refer to “Optional function list 1”

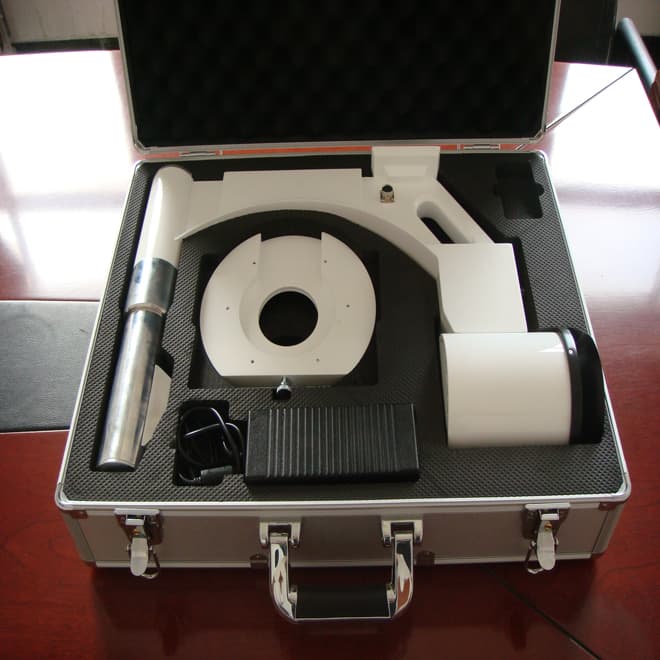

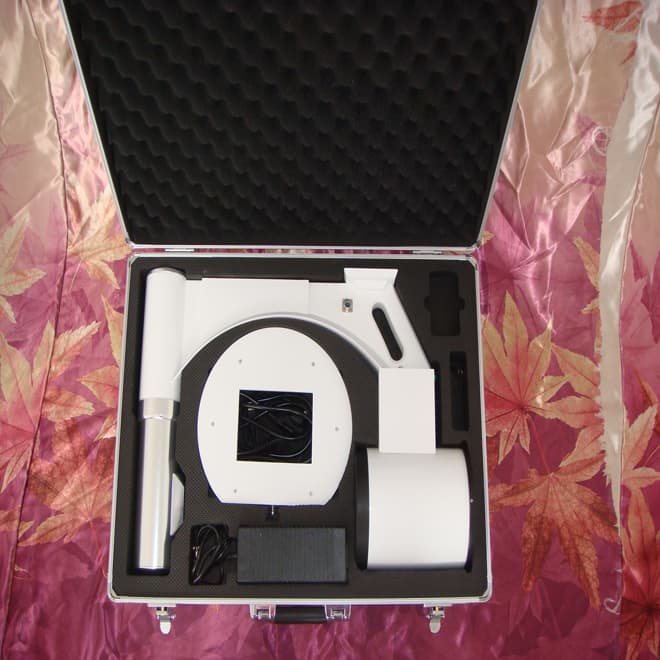

Configuration list Portable X-ray machine:One Aluminum box:One Adapter:One Shield screen:One Instructions（qualified certificates & warranty cards）:One Optional functions:Refer to “Optional function list 1”
