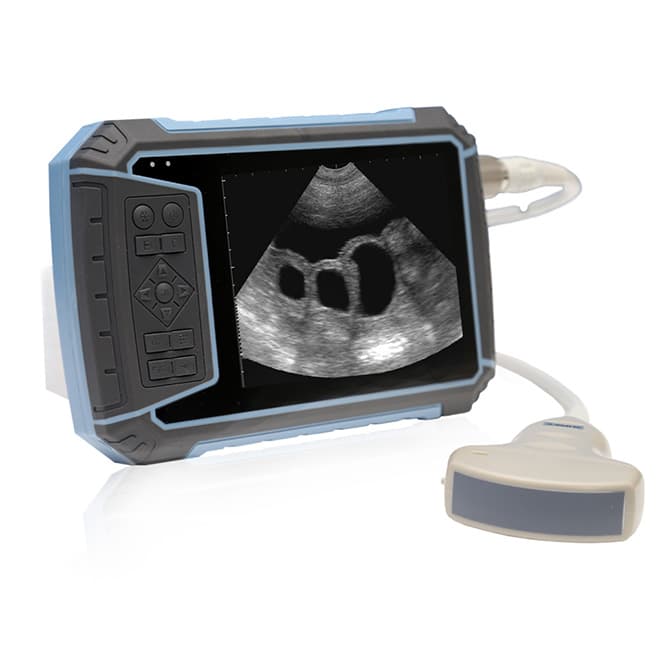

Veterinary ultrasound machine EKONVU27

Quick Details

Ovine, Bovine, Equine, Swine, Alpaca, Feline, Canine, Rabbit, Fish, Snake and etc.

Specifications

EKONVU27 Waterproof Veterinary Ultrasound Scanner

Veterinary ultrasound machine EKONVU27 Applications:

Ovine, Bovine, Equine, Swine, Alpaca, Feline, Canine, Rabbit, Fish, Snake and etc.

Veterinary ultrasound machine EKONVU27 Features:

5.7" TFT-LCD, wide visual, high brightness, high contrast, image clear and exquisite.

Hand-held design, smart and light, easy to carry, convenient for detection.

Adopted AC and DC to supply power, lithium battery can be support machine to work more than 5 hours.

Veterinary ultrasound machine EKONVU27 Specifications:

• Detect depth(mm): ≥140
• Blind zone(mm): ≤3
• Monitor size: 5.7 inch TFT-LCD
• Display mode: B, B+B
• Image gray scale: 256
• Image storage: available
• Cine loop: available
• Scan depth: available
• Image flip: up/down, left/right
• Focus position: adjustable
• Posture mark: available
• Image process: Histogram, color encode, gama, image smooth
• Probe frequency: Adjustable ( 3 point each probe )
• Frame correction: Adjustable
• Measurement: distance, circumference, area, volume, GA and etc.
• Notation: date, time, name, sex, age, height, weight, farm.
• Output report: regular
• Charging method: adapter, battery
• Adapter rating: 100-240V～, 50-60Hz, 70VA
• Battery continuous work: ≥5 hours
• Machine dimension: 203mm(L)x136mm(W)x45mm(H)
• Net weight: 950g

Veterinary ultrasound machine EKONVU27 Standard Configuration:

• Scanner Body: 1pc
• Li-ion Battery: 1pc

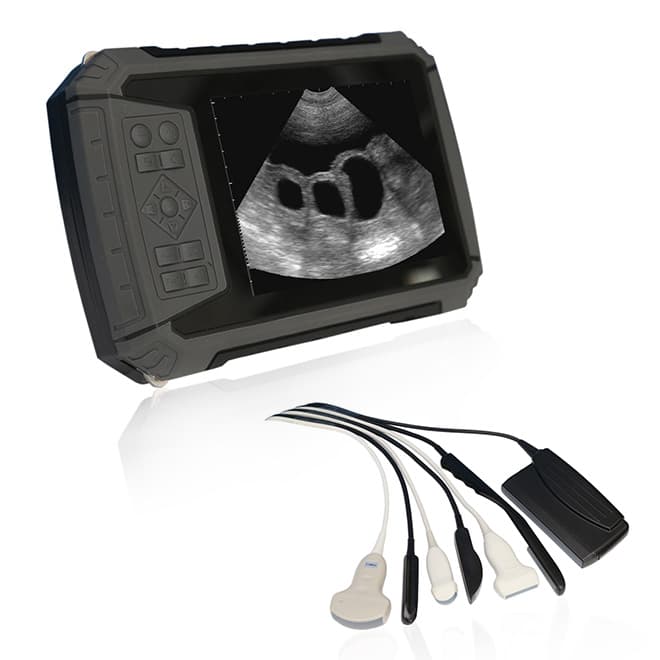

• 3.5MHz Convex Probe: 1pc
• Charger with a Set of Wires: 1set
• Memory Card: 8GB
• User Manual: 1pc

Veterinary ultrasound machine EKONVU27 Optional:

• Micro-convex probe
• Rectal Probe
• Convex Rectal Probe
• Back-fat Probe
• Li-ion Battery
