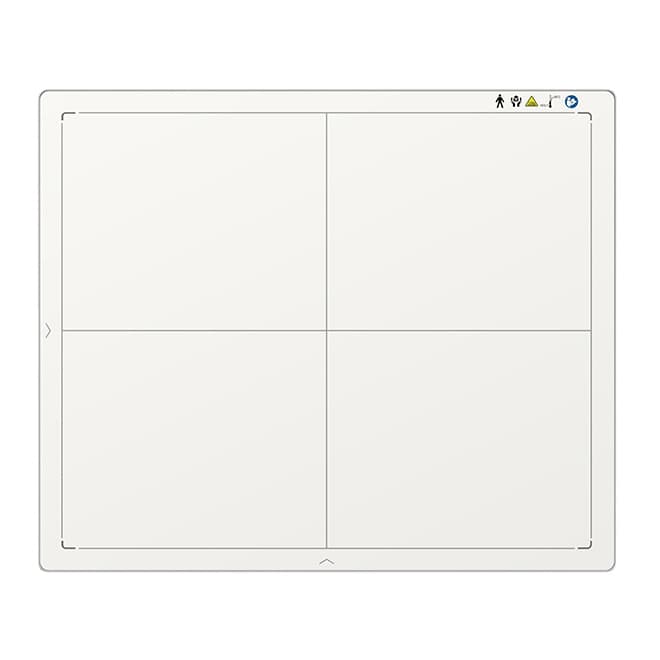

Wireless Flat Panel Detector EKONFP03 Portable X-ray Detector

Quick Details

Wireless cassette size flat panel detectors, is CIS/COS based on portable A-Si detector. Reliable isync+AED, stable wireless connection, long battery: life, high image quality and light weight design, establish EKONFP03 as the standard of quality in X-ray DR retrofit and system application.

Specifications

Features of Wireless Flat Panel Detector EKONFP03

1. Fast workflow
2. More image details
3. Excellent image quality
4. Cassette-size flat panel detector

Specification of Wireless Flat Panel Detector EKONFP03

• Detector Technology: Amorphous Silicon
• Scintillator:CsI
• Active Area:345.6mm x 420mm
• Number of Pixels:2304 x 2800
• Pixel Pitch:150 um
• AD Conversion:16 bit
• Trigger Mode:AED/Software
• Data Interface:thernet/WiFi(802.11ac)
• Dimension:384mm x 460mm x 15mm
• Weight:.6 kg
• Drop Height:120cm
• Static Loading:150kg Uniformly
• Battery Capacity:5 h

Client Usage Photos of Wireless Flat Panel Detector EKONFP03

Image Performance Sensitivity(LSB/uGy)：Typ. 750 MTF@ 0 LP/mm (@RQA5, Typ.)：1 MTF @ 1.0 LP/mm (@RQA5, Typ.)：67% MTF @ 2.0 LP/mm (@RQA5, Typ.)：46% MTF @ 3.0 LP/mm (@RQA5, Typ.)：28% DQE @ 0 LP/mm (@RQA5, Typ.)：59% DQE @ 1.0 LP/mm (@RQA5, Typ.)：40% DQE @ 2.0 LP/mm (@RQA5, Typ.)：27% DQE @ 3.0 LP/mm (@RQA5, Typ.)：14% Limiting Resolution (without phantom or grid)：3.3 lp/mm

Workflow Trigger Mode：AED/Software Preview Image：Typ. 3s Full Image Time：Typ. 5s Cycle Time：Typ. 8s
