Wireless Flat Panel Detector EKONFP04 X-ray machine

Quick Details

Unique wireless communication protocal ensures fast and reliable transmission of a full resolution image within 2 seconds, and no more than 5 seconds even on the worst environment.Equipped with highly sensitive AED function, it is easily synchronized with any types of generations.

Specifications

Features of Wired/Wireless Flat Panel Detector EKONFP04

Type EKONFP04 is a 12* 10 inches wire-less detector with features of light weight,cassette size and portable. Unique wireless communication pro-tocol ensures fast and reliable trans-mission of a full resolution image within 2 seconds, and no more than 5 seconds even in the worst environ-ment. The detector output high quali-ty images with high DQE and resolu-tion. Equipped with highly sensitive AED function, it is easily synchronized with any type of generators.

Specification of Wired/Wireless Flat Panel Detector EKONFP04

• Detector Technology: a-Si
• Scintillator:GOS/CSI
• Image Size:29x25cm(12x10in)
• Pixel Matrix:2048x1792
• Pixel Pitch:140 um
• AD Conversion:16 bit
• Minimum Detectable Dose: 20nGy(GOS) 14nGy(CSI)
• Maximun Liner Dose(RQA5):150uGy(GOS) 110uGy(CSI)
• Ghost(300uGy,60s):<0.25%
• saptial resolution: 3.6LP/mm
• Image Acquisition Time: 1s(wired)/2s(wireless)
• X-ray Voltage range: 40-150KV
• Battery Standby time:4h
• Data Interface: GigE/802.11ac
• Power Dissipation:20w
• Adapter Input: AC100-240v,50-60Hz
• Dimensions: 31.05x27.8x1.5cm(wired)
• Housing Material: Carbon, Alloy
• Water Tightness: IPX3

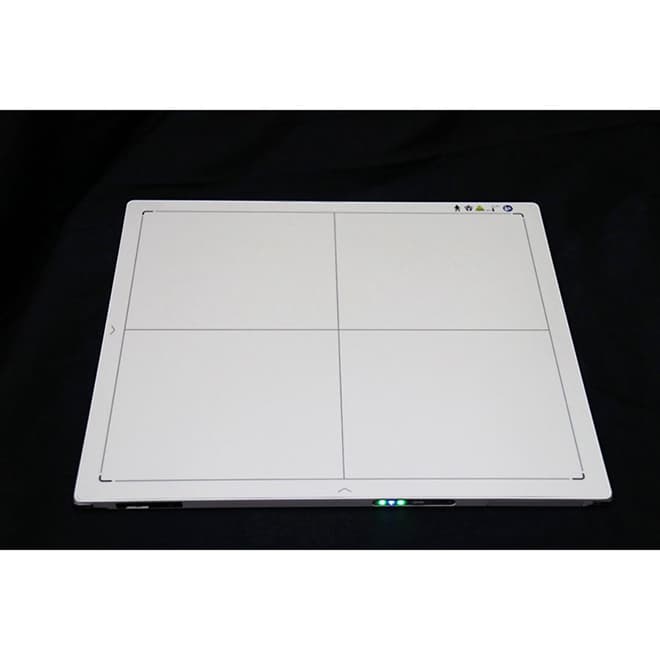

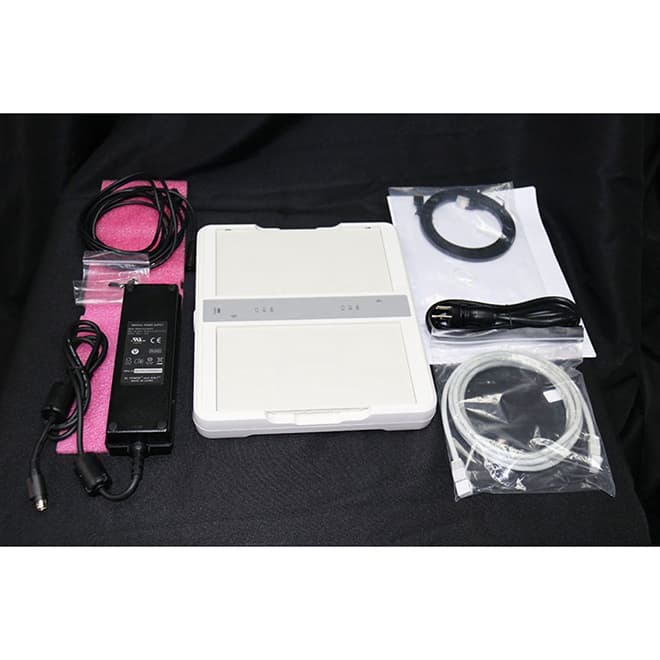

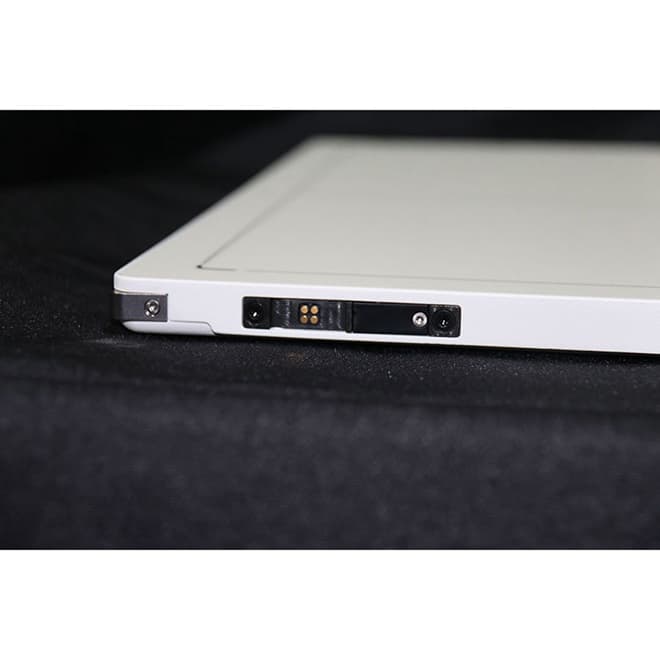

Client Usage Photos of Wired/Wireless Flat Panel Detector EKONFP04
