Wireless X-Ray Detector PaxScan 4336W v4-Xray Digital Light Weight Wireless Mobile Flat Panel Detector
MODEL / 4336W v4The PaxScan 4336W v4 is a light weight, wireless flat panel detector designed for digital radiographic systems. The 4336W v4 fits standard 14”x17” bucky trays and its wireless communication enables easy migration between table, above the table, chest stand, and mobile cart applications.

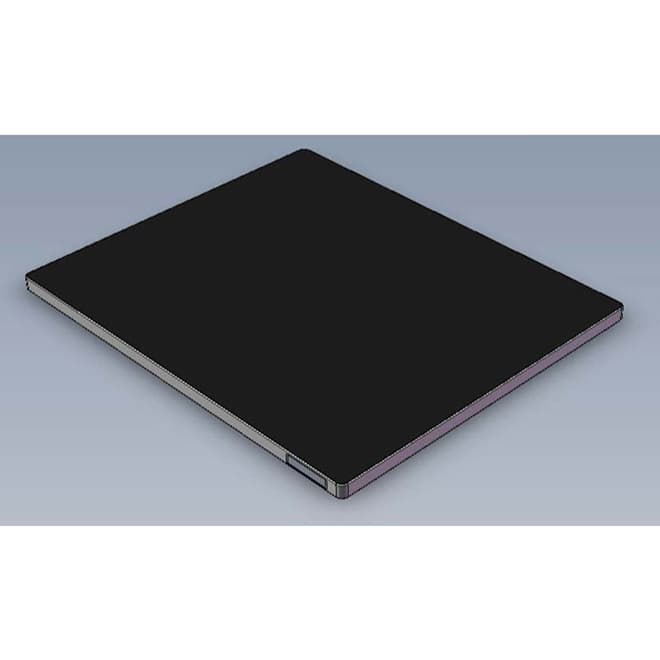

- Client Usage Photos of Wireless X-Ray Detector PaxScan 4336W v4
Product Details
Quick Details
The PaxScan 4336W v4 is a light weight, wireless flat panel detector designed for digital radiographic systems. The 4336W v4 fits standard 14”x17” bucky trays and its wireless communication enables easy migration between table, above the table, chest stand, and mobile cart applications.
Specifications
Features of Wireless X-Ray Detector PaxScan 4336W v4
- light weight
- wireless communication
- advanced system
Specification of Wireless X-Ray Detector PaxScan 4336W v4
Receptor Type: Amorphous Silicon with TFT/PIN diode Technology
Conversion Screen:CsI, DRZ +
Pixel Area
Total:42.7 (v) x 34.4 (h) cm (16.8 x 13.5”)
Active (DRZ+):42.4 (v) x 34.1 (h) cm (16.7 x 13.4”)
Active (CsI):42.4 (v) x 33.9 (h) cm (16.6 x 13.3”)
Pixel Matrix
Total: 3,072 (v) x 2,476 (h)
Active (DRZ+): 3,052 (v) x 2,456 (h)
Active (CsI):3,032 (v) x 2,436 (h)
Pixel Pitch: 139m
Limiting Resolution:3.6 lp/mm
Main Functionalities
Cycle Time @ 550ms 7 sec (MSR2, RCT) 7 sec (MSR2, RCT) (X-ray Window)
X-ray window 350-3500 ms 350-3500 ms
Dose Range: DRZ+ CsI
Maximim Linear Dose 100 μGy 69 μGy
NED 0.65 μGy 0.4 μGy
Energy Range Standard:40 - 150 kVp
Fill Factor:60%
Scan Method: Progressive
Data Output: Wireless
A/D Conversion:16-bits
Exposure Control Inputs:Prepare, Expose-Request;Outputs:: Expose-OK
Minimum Signal Strength Required:>-80 dBm or no image will be acquired

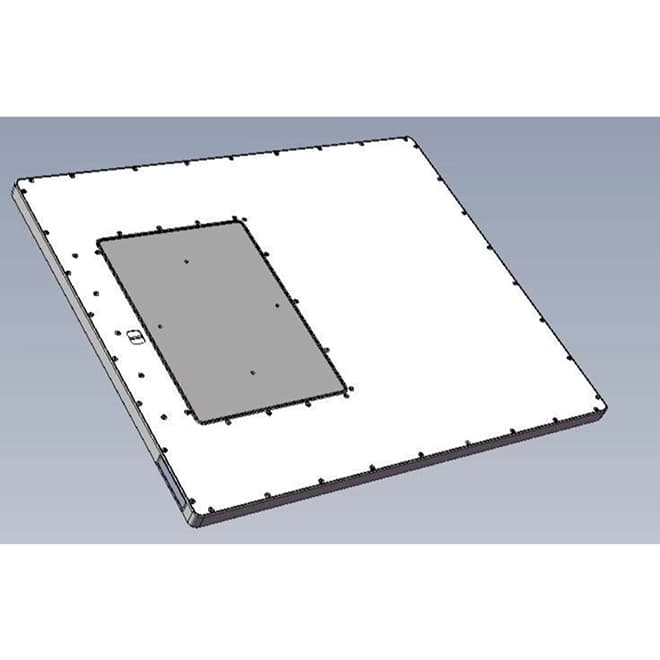

Client Usage Photos of Wireless X-Ray Detector PaxScan 4336W v4
Technical Specifications
Technical parameters from the currently available product information.
- Conversion Screen
- CsI, DRZ +
- Total
- 42.7 (v) x 34.4 (h) cm (16.8 x 13.5”)
- Active (DRZ+)
- 42.4 (v) x 34.1 (h) cm (16.7 x 13.4”)
- Active (CsI)
- 42.4 (v) x 33.9 (h) cm (16.6 x 13.3”)
- Pixel Pitch
- 139m
- Limiting Resolution
- 3.6 lp/mm
- Dose Range
- DRZ+ CsI
- Energy Range Standard
- 40 - 150 kVp
- Fill Factor
- 60%
- Data Output
- Wireless
- A/D Conversion
- 16-bits
- Exposure Control Inputs
- Prepare, Expose-Request ;Outputs:: Expose-OK
- Minimum Signal Strength Required
- >-80 dBm or no image will be acquired
Specifications can vary by configuration. Confirm intended use, final model, and supply details with our product team.
